-Agent Spatial tool-use elicits reasoning for spatial intelligence.

Yalun Dai^1*, Hao Li^1,4*◆, Shulin Tian¹, Runmao Yao¹, Yuhao Dong¹, Fangzhou Hong^1◆, Zhaoxi Chen^1◆, Fangfu Liu², Baoliang Tian³, Dingwen Zhang⁴, Tao Wang^3†, Kim-Hui Yap^1†, Ziwei Liu^1◆

¹Nanyang Technological University ²Tsinghua University ³ByteDance ⁴NWPU ^◆Ropedia
^*Equal contribution. ^†Corresponding author.

Paper arXiv Code BibTeX

Agent Trajectory Sample

Step 00 · Question

Standing by the headphones, facing away from the entrance door — where is the camera?

Choices: front-left, front-right, back-left, back-right.

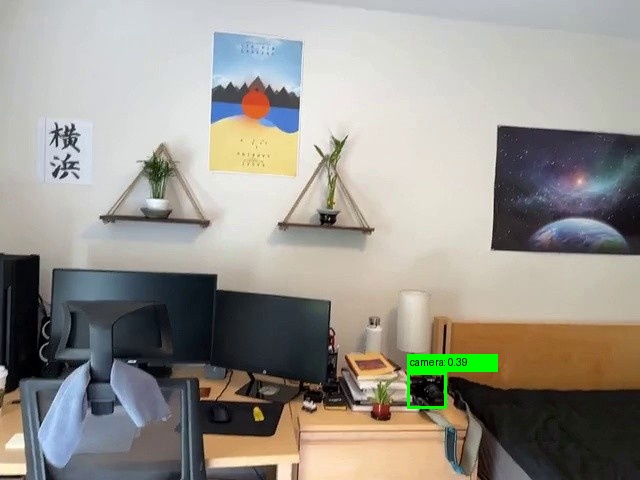

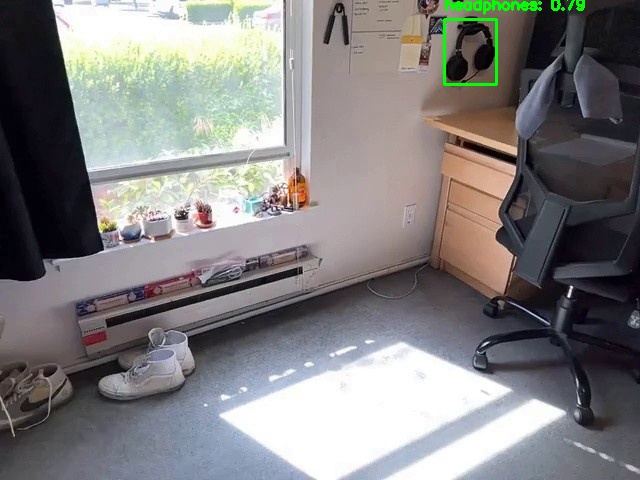

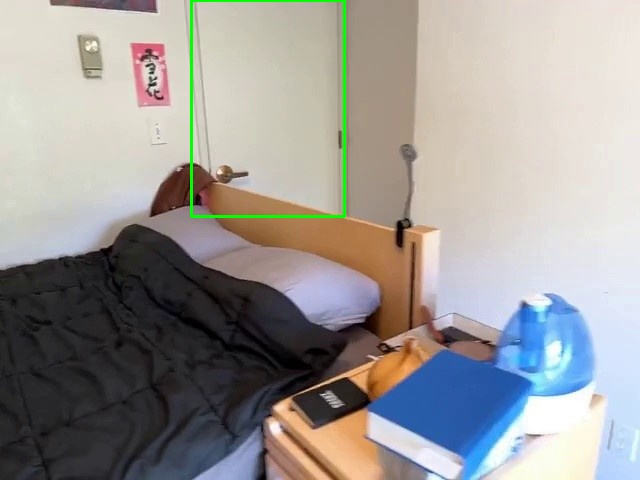

Step 01 · 2D Evidence

Ground the entities before reasoning.

headphones + door + camera · 3 / 3 located ✓

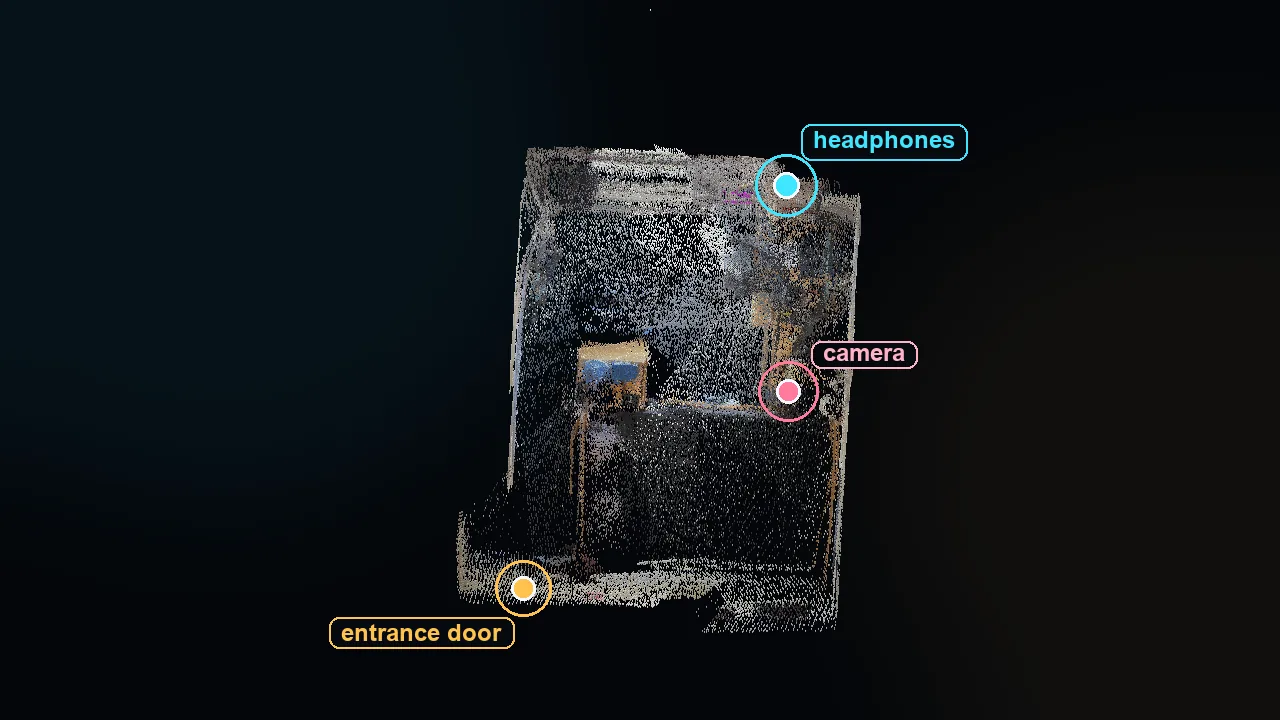

Step 02 · 3D Lift

Lift grounded objects into the scene frame.

3 anchors · headphones, door, camera centers

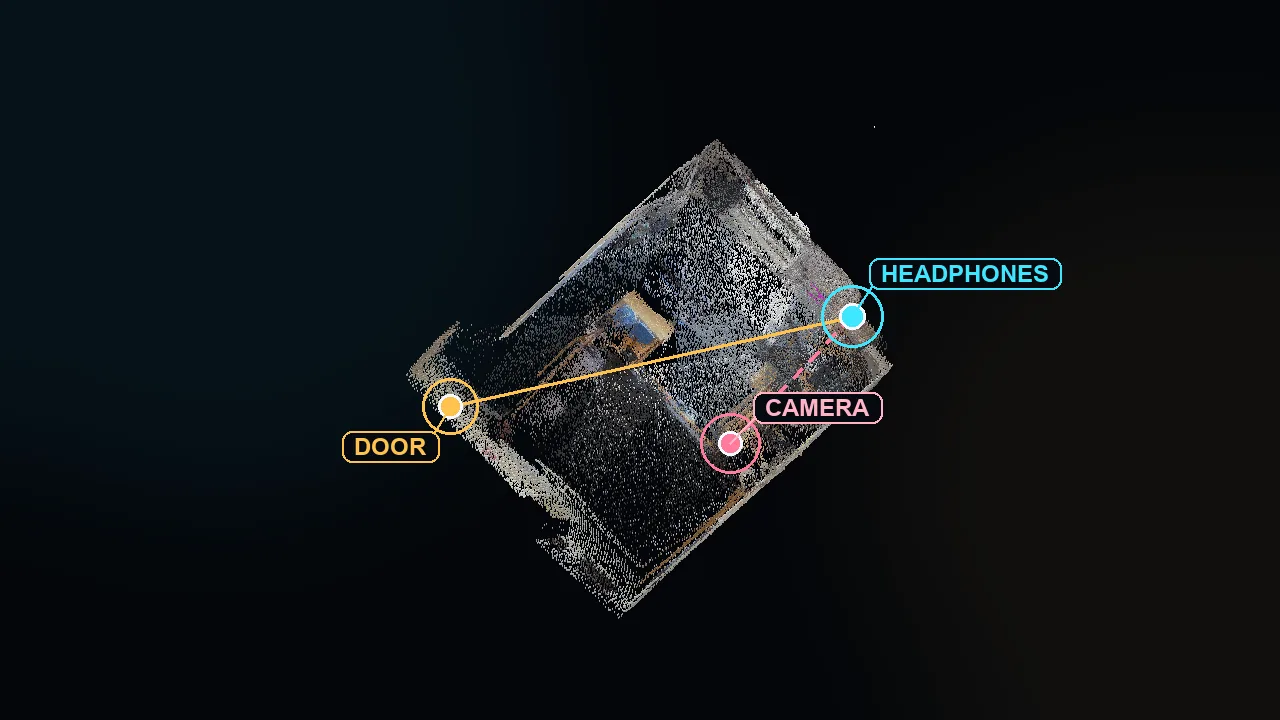

Point cloud aligned to top-down scene view

Step 03 · Orientation

Build the egocentric frame.

Stand at headphones, face away from the door

Step 04 · Direction

Resolve the camera quadrant.

Camera falls at the person's back-right

Dback-right

Final · Answer

Camera is at the person's back-right.

✓ correct · GT D · 3 turns · 6 tool calls

01Performance Dashboard

Direct benchmark performance comparison.

A compact view of the paper tables: bars grow on entry, values count up, and S-Agent stays highlighted against the strongest baselines.

Zero-Shot Results

S-Agent leads the broad zero-shot picture.

Table 1, 2, and 6 show S-Agent first on MMSI-Bench and ViewSpatial-Bench, with a 58.8 ReVSI average.

S-Agent Gemini 3 Pro GPT-5.x VST-3B / 7B InternVL3.5-38B Qwen3-VL / SN-SI VLM3R-7B Seed 1.6

MMSI-Bench

Accuracy (%)

0.0S-Agent

0.0Gemini

0.0GPT-5.4

0.0Seed

0.0VST-7B

ReVSI

Accuracy (%)

0.0S-Agent

0.0InternVL

0.0Qwen32B

0.0GPT-5.2

0.0VLM3R

ViewSpatial-Bench

Accuracy (%)

0.0S-Agent

0.0VST-3B

0.0SN-SI

0.0VST-7B

0.0Gemini

Zero-Shot Results

S-Agent +1.2 on MMSI-Bench
vs Gemini 3 Pro.

SFT Results

S-Agent-8B lifts Qwen3-VL-8B.

Table 3 shows +10.5 on MMSI-Bench and +4.6 on ViewSpatial-Bench over the base Qwen3-VL-8B.

S-Agent-8B S-Agent (Qwen3-VL) GPT-5.4 Qwen3-VL-8B

MMSI-Bench

Accuracy (%)

0.0GPT-5.4

0.0S-Agent-8B

0.0Qwen

0.0S-Agent Qwen

ViewSpatial-Bench

Accuracy (%)

0.0S-Agent-8B

0.0GPT-5.4

0.0S-Agent Qwen

0.0Qwen

SFT Results

S-Agent-8B +10.5 on MMSI-Bench
vs Qwen3-VL-8B.

02The framework

A planner, an evidence hierarchy, and a dual memory.

At each step, a tool-calling planner maps the question, observations, and memory to an evidence request; a tool or expert executes it and updates both memories. The agent terminates once evidence is sufficient.

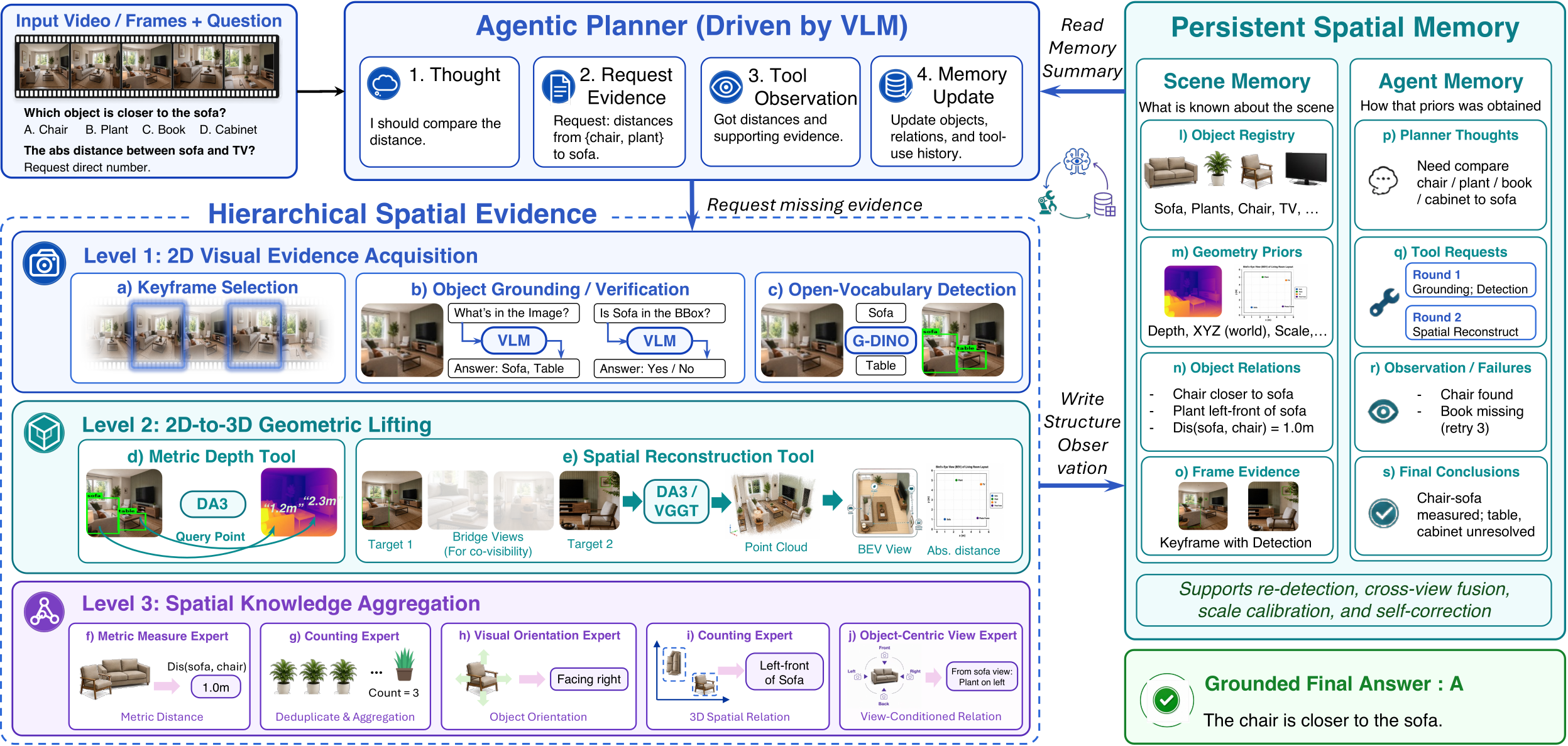

The S-Agent pipeline: VLM planner, three-level spatial tool hierarchy, and scene/agent memory.

The S-Agent pipeline. A VLM acts as semantic planner, spatial tools and experts as scene-specific evidence providers, and memory as the carrier of persistent 3D state across views, frames, and reasoning steps.

Level 1

2D Visual Evidence Acquisition

Pulls useful clues from many overlapping, incomplete views: picking the frames that matter, finding the objects the question asks about, and locating candidates with open-vocabulary detection.

vlm_ground detect (GDINO) depth keyframe

Level 2

2D-to-3D Geometric Lifting

Turns flat image clues into 3D: depth, real-world coordinates, camera poses, and bird's-eye / new-view evidence — so scattered observations all live in one shared space.

metric_3d (DA3) camera pose BEV

Level 3

Spatial Knowledge Aggregation

Expert tools turn the clues into clear answers — how many, which direction, which way things face, and how big or far — handed back to the planner ready to use.

measure count relpos vis_orient obj_view

Scene Memory

Builds a growing memory organized around objects — tying repeated sightings to the same object and collecting its visual and 3D evidence. It remembers only what the question needs, not a full 3D scan of the scene.

Agent Memory

Keeps a record of the reasoning — thoughts, tool calls, results, failures, and partial conclusions — so the planner can see what's missing, recheck what's unsure, and avoid repeating or contradicting itself.

03Results

Best overall zero-shot spatial reasoning.

Without any spatial fine-tuning, S-Agent tops MMSI-Bench and ViewSpatial-Bench, with the largest gains on motion and perspective reasoning.

✓Best overall on MMSI-Bench (46.4%), surpassing Gemini 3 Pro & GPT-5.4
✓Up to +17.4 pp over the base VLM; +31.1 on camera-motion
✓S-Agent-8B distilled to Qwen3-VL-8B reaches GPT-5.4 parity

MMSI-Bench — zero-shot, by reasoning dimension

Per-dimension accuracy following the MMSI-Bench taxonomy. C/O/R = camera / object / region. Δ on the S-Agent row is the absolute gain over the InternVL3.5-8B base VLM.

Model	C-C	O-O	R-R	C-O	O-R	C-R	Meas.	Appr.	Cam.	Obj.	MSR	Avg.
Proprietary models
Gemini 3 Pro	47.3	48.9	42.0	43.0	37.6	60.2	64.1	39.4	41.9	47.4	37.9	45.2
GPT-5.4	41.9	33.0	35.8	49.8	42.4	68.7	54.7	37.4	28.3	40.8	36.4	41.9
Grok 4	36.6	35.1	39.5	34.9	45.9	50.6	21.9	22.7	40.5	43.4	38.4	37.8
Open-weight general models
InternVL3.5-8B (base)	29.0	26.6	29.6	24.4	31.8	25.3	29.7	25.8	14.9	34.2	36.4	29.0
Qwen3-VL-8B-Instruct	28.0	37.2	32.1	31.4	35.3	38.5	37.5	15.2	27.0	28.9	29.8	31.1
Qwen3.5-9B	34.4	36.2	34.6	39.5	38.8	54.2	56.3	28.8	36.5	26.3	28.8	36.5
Open-weight spatial models
SN-SI-1.1-Qwen3VL-8B	44.1	38.3	33.3	65.1	38.8	59.0	48.4	24.2	29.7	34.2	22.2	38.1
VST-7B-SFT	39.8	36.2	35.8	37.2	29.4	33.7	29.7	47.0	36.5	35.5	18.2	32.5
S-Agent (Ours)	46.2	43.6	37.0	43.0	43.5	63.9	57.8	40.9	46.0	48.7	44.4	46.4 +17.4

Accuracy in %. The largest gains concentrate in camera motion (+31.1), multi-step reasoning (+8.0), and the camera–region relation (+38.6), categories that benefit most from accumulated geometric evidence.

ViewSpatial-Bench (zero-shot)

Camera- and person-perspective spatial reasoning. Δ over the base VLM.

Model	C-OVO	C-RD	P-OVO	P-RD	P-SSRD	Avg.
Gemini 3 Pro	31.6	61.9	41.1	74.4	38.9	50.4
GPT-5.4	27.9	60.2	41.0	48.5	40.1	45.6
Qwen3-VL-8B	29.7	54.2	47.3	40.3	31.1	42.2
VST-7B-SFT	29.6	52.7	51.9	50.7	64.5	50.5
S-Agent (Ours)	55.5	62.5	42.2	81.1	60.6	60.0 +14.4

Best on C-OVO (55.5) and P-RD (81.1); +20.5 over GPT-5.4 on P-SSRD.

Trajectory distillation → S-Agent-8B

Fine-tuning Qwen3-VL-8B on 292K S-Agent trajectories (S-300K). Accuracy in %.

Model	MMSI	ViewSpatial
GPT-5.4 (proprietary)	41.9	45.6
Qwen3-VL-8B (base)	31.1	42.2
S-Agent-8B (Ours)	41.6 +10.5	46.8 +4.6

A ~15-point lift over the base model on MMSI-Bench, reaching parity with advanced closed-source models.

04Reasoning trajectories

Browse real agent sessions.

Each module is a real S-Agent run — the question, the key visual evidence, the tools it called, and the answer it submitted. Open one to step through the full reasoning trace.

DistanceReVSI

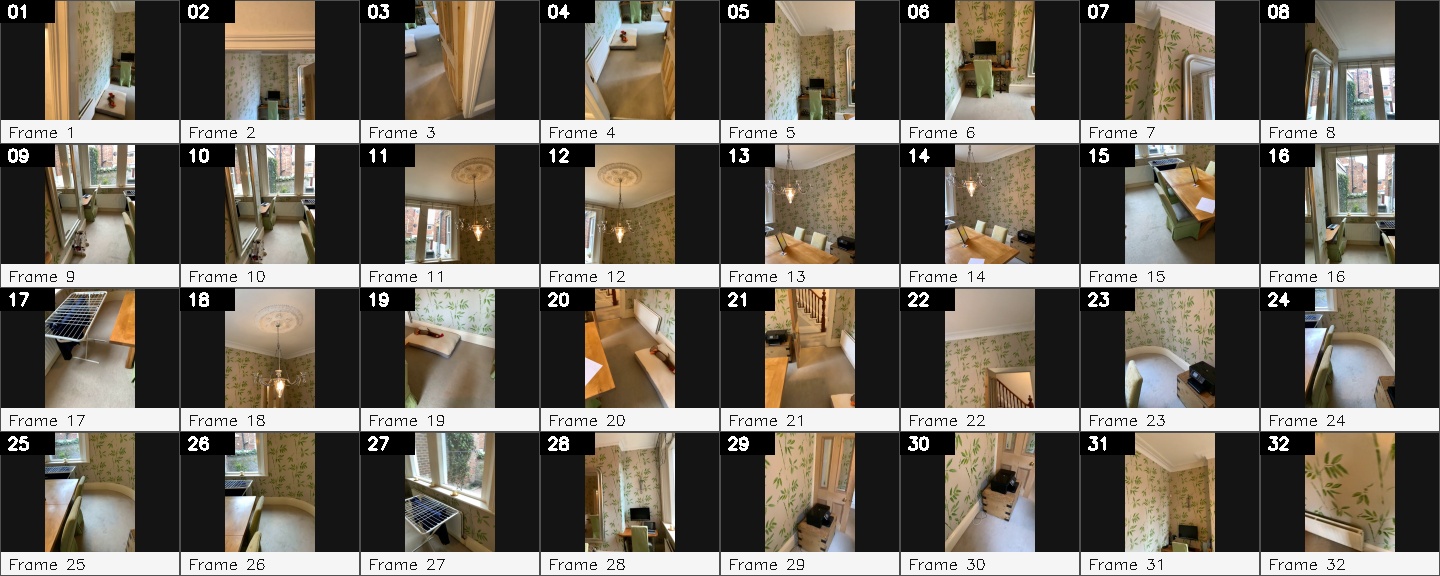

Keyframes selected for a distance trajectory

Question

Measuring from the closest point of each object, what is the direct distance between the computer mouse and the smoke detector (in meters)?

GT 3.0 m · S-Agent 3.09 m ✓ — T★ keyframe search → metric-depth 3D lifting → measurement expert.

Open reasoning trajectory →

DistanceReVSI

Question

Measuring from the closest point of each object, what is the direct distance between the laptop and the desktop printer (in meters)?

GT 3.4 m · S-Agent 3.33 m ✓ — T★ keyframe search → metric-depth 3D lifting → measurement expert.

Open reasoning trajectory →

CountingReVSI

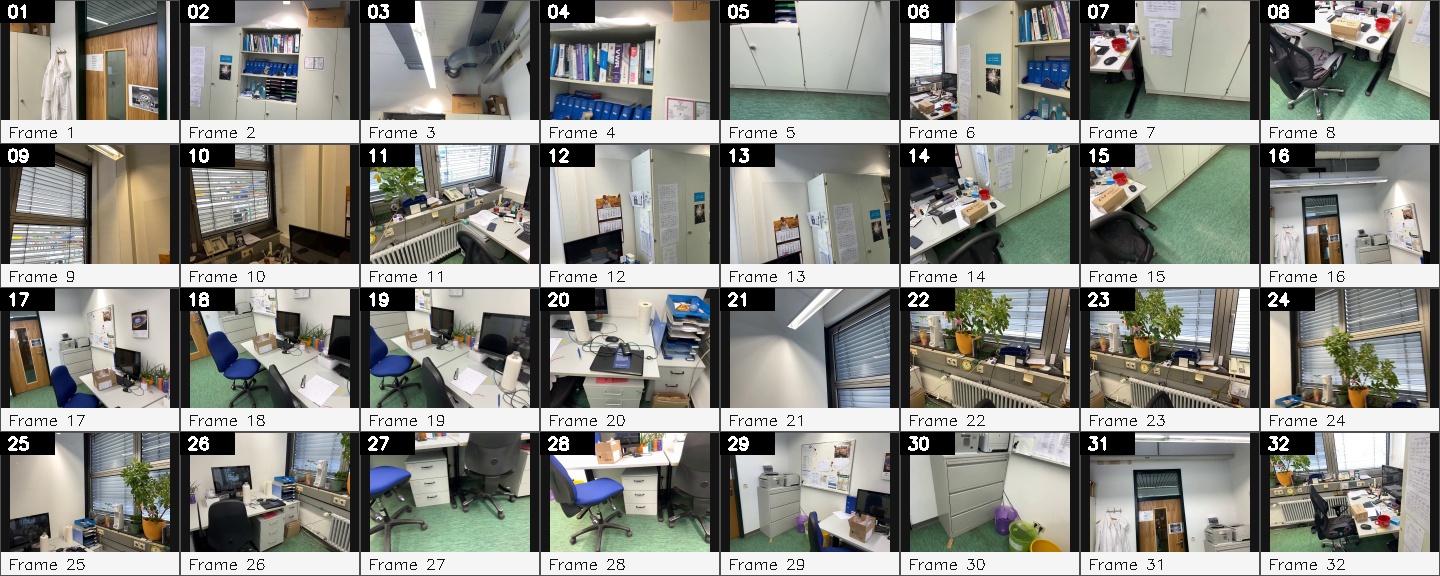

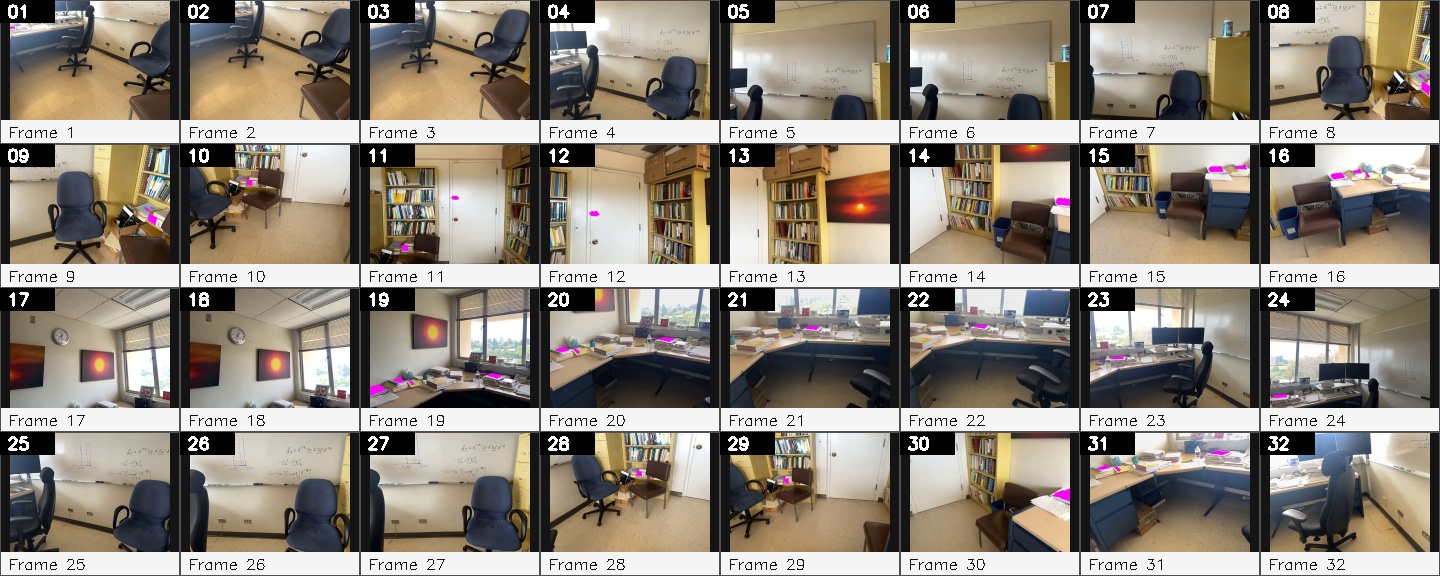

Keyframes selected for a counting trajectory

Question

How many monitor(s) are in the scene?

GT 3 · S-Agent 3 ✓ — T★ keyframe search → open-vocab detection → counting expert (multi-frame NMS).

Open reasoning trajectory →

CountingReVSI

Question

How many monitor(s) are in the scene?

GT 2 · S-Agent 2 ✓ — T★ keyframe search → open-vocab detection → counting expert (multi-frame NMS).

Open reasoning trajectory →

RouteReVSI

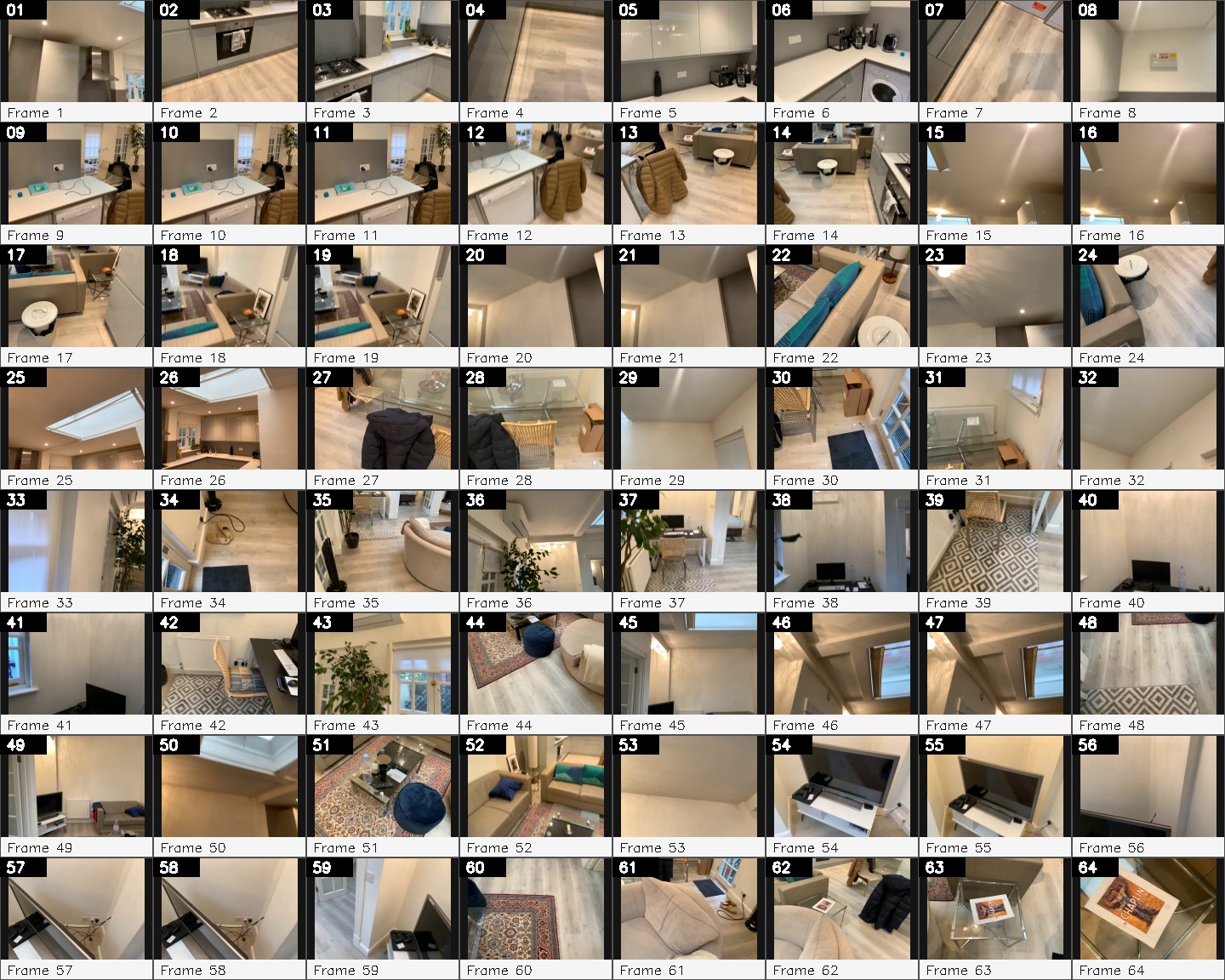

Keyframes selected for a route trajectory

Question

Beginning at the range hood and facing the dishwasher, which turns navigate to the floor lamp?

GT A · S-Agent A ✓ — detection → grounding → Metric3D → spatial reconstruction.

Open reasoning trajectory →

RouteReVSI

Question

Beginning at the laptop and facing the window, which turns navigate to the closet?

GT B · S-Agent B ✓ — detection → grounding → Metric3D → spatial reconstruction.

Open reasoning trajectory →

SizeReVSI

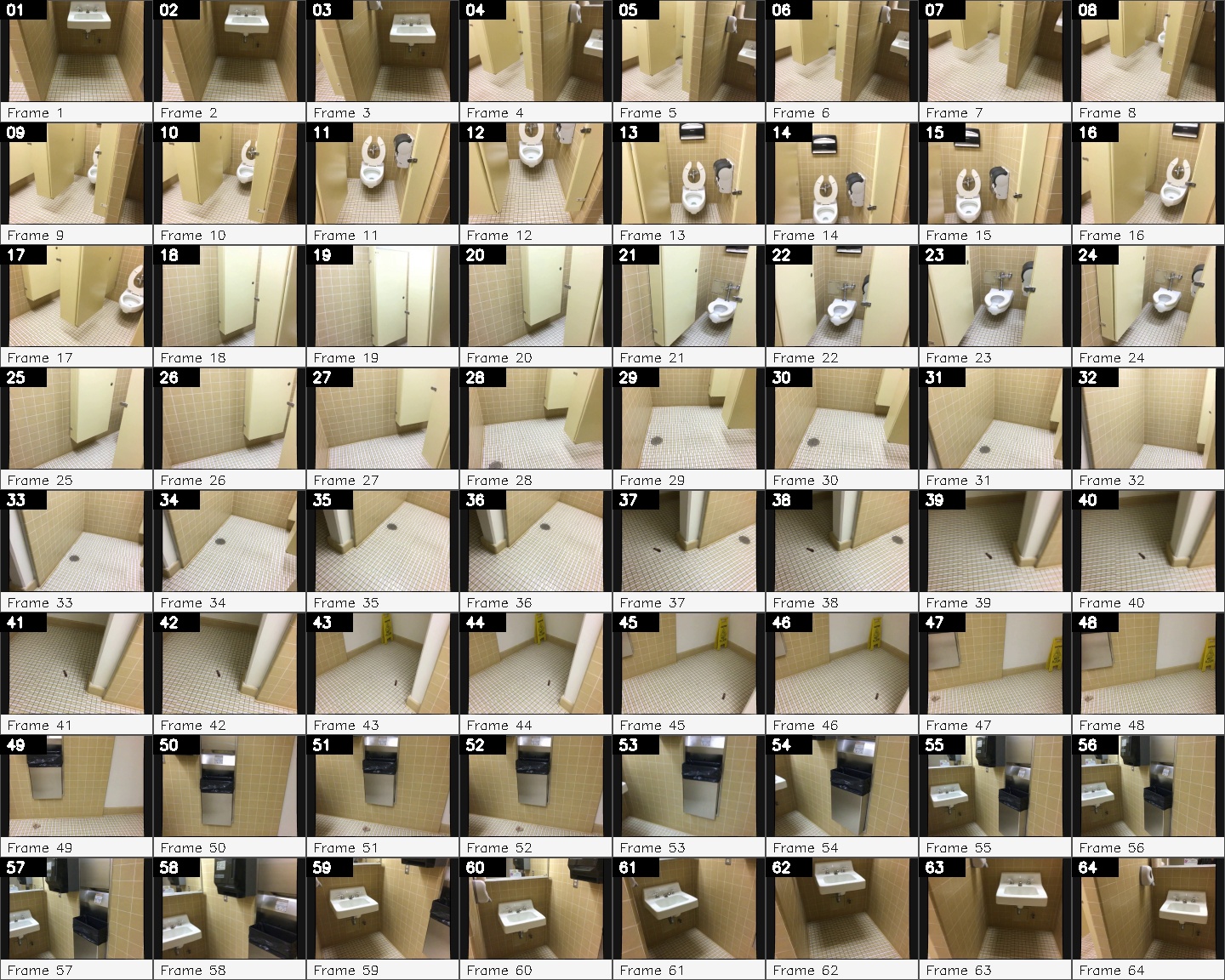

Keyframes selected for a size trajectory

Question

What is the longest dimension of the wet floor sign, measured in centimeters?

GT 61 cm · S-Agent 62.6 cm ✓ — detection → grounding → Metric3D → measurement expert.

Open reasoning trajectory →

MeasurementMMSI

Input image for a measurement trajectory

Question

Assuming the width of this cabinet is 10 cm, what is the length of this cabinet?

GT D · S-Agent D ✓ — detection → Metric3D geometry → measurement expert.

Open reasoning trajectory →

MeasurementMMSI

Question

Compared to the plate under the wooden table, which has a larger radius: the ceramic pot or the plate?

GT A · S-Agent A ✓ — object detection → 3D metric probes → size comparison.

Open reasoning trajectory →

Multi-stepMMSI

Question

With the direction of going up the stairs facing north, which spatial statement is correct?

GT D · S-Agent D ✓ — detection → grounding → Metric3D → relative-position expert.

Open reasoning trajectory →

Multi-stepMMSI

Question

Given several room facts, which statement about the scene is incorrect?

GT B · S-Agent B ✓ — count, detection, grounding, metric and relative-position checks.

Open reasoning trajectory →

Multi-stepMMSI

Question

If the window faces north, where is the cardboard box?

GT A · S-Agent A ✓ — grounding → Metric3D reconstruction → southeast-corner resolution.

Open reasoning trajectory →
